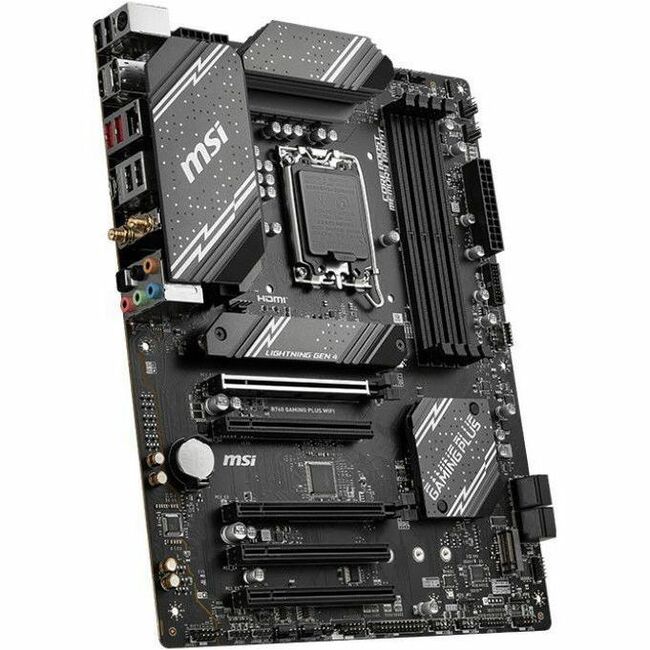

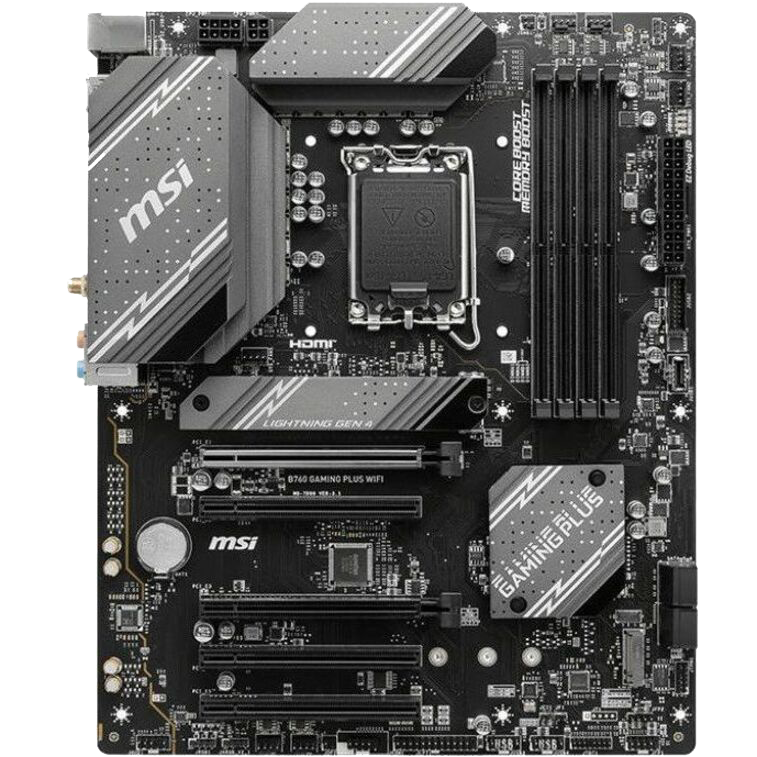

MSI B760 GAMING PLUS WIFI Gaming Desktop Motherboard

Description

General Information
Manufacturer: MSI
Manufacturer Part Number: B760GPWIFI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Model: B760 GAMING PLUS WIFI
Product Name: B760 GAMING PLUS WIFI Gaming Desktop Motherboard

Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen & 13th Gen
Processor Supported: Core, Pentium Gold, Celeron

Memory
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:0, 1, 5, 10

Video
Onboard Video: CPU Dependent Video

Audio
Audio Channels: 7.1

Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions
Total Number of Expansion Slots: 5
PCI Express Standard: PCI Express 4.0, PCI Express 3.0
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 5

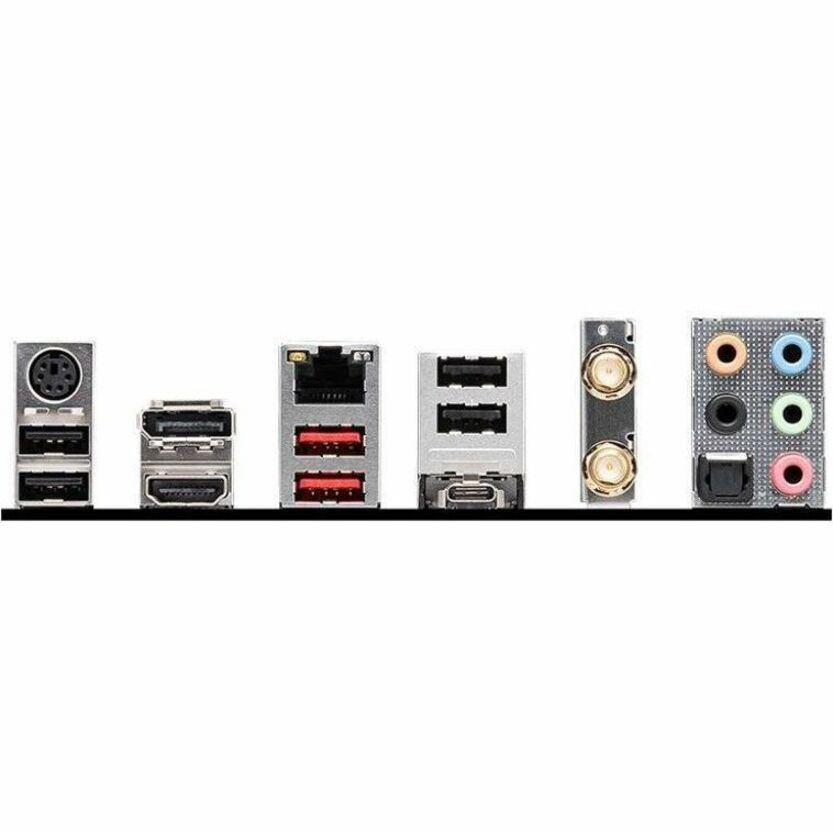

Interfaces/Ports
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1

Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4

Physical Characteristics
Form Factor: ATX
Width: 12″
Depth: 9.6″

Miscellaneous
Package Contents:
B760 GAMING PLUS WIFI Gaming Desktop Motherboard
wi-fi antenna
Sata Cables
M.2 Screw/Stand off Set
I/O Shield
Quick Installation Guide
European Union Regulatory Notice
